Wiring Slideshow5

Slideshow 5: eyelets and testing WiringAssets/000_lg.jpg

Put a small Eyelet on the EL-66 pin WiringAssets/114_lg.jpg

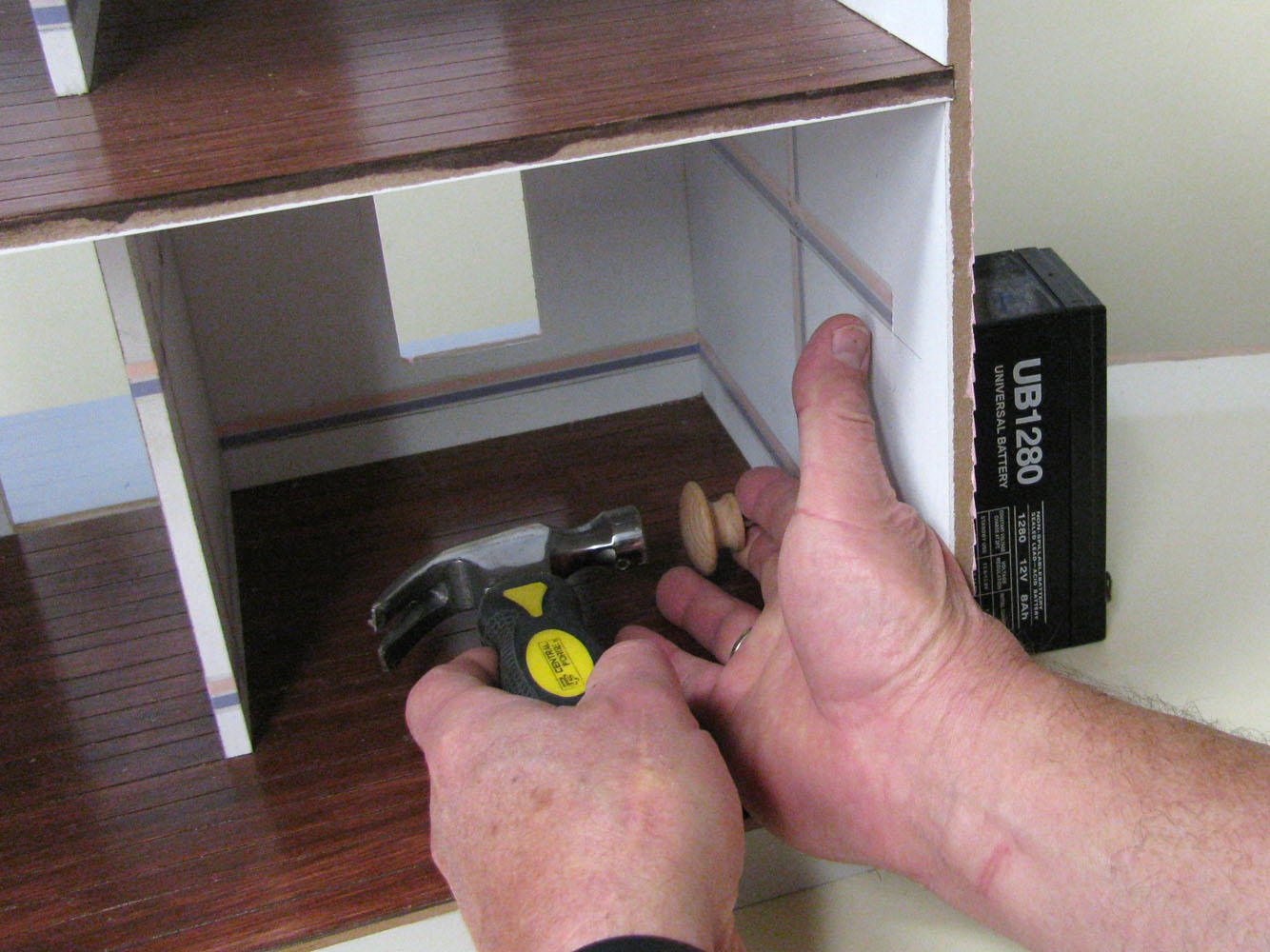

Start the eyelet gently... WiringAssets/151_lg.jpg

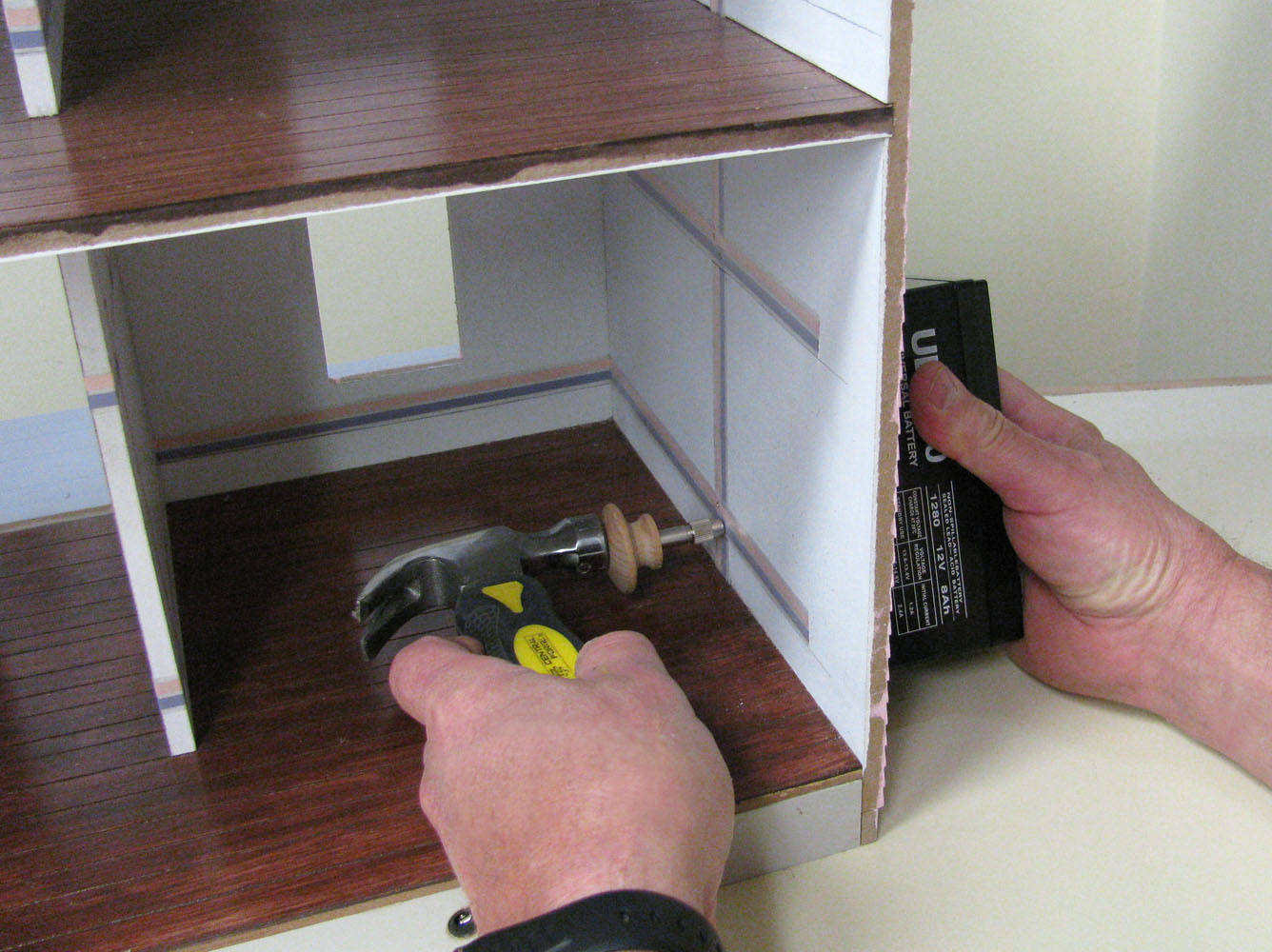

... and finish with a backer (a weight with a smooth surface) WiringAssets/152_lg.jpg

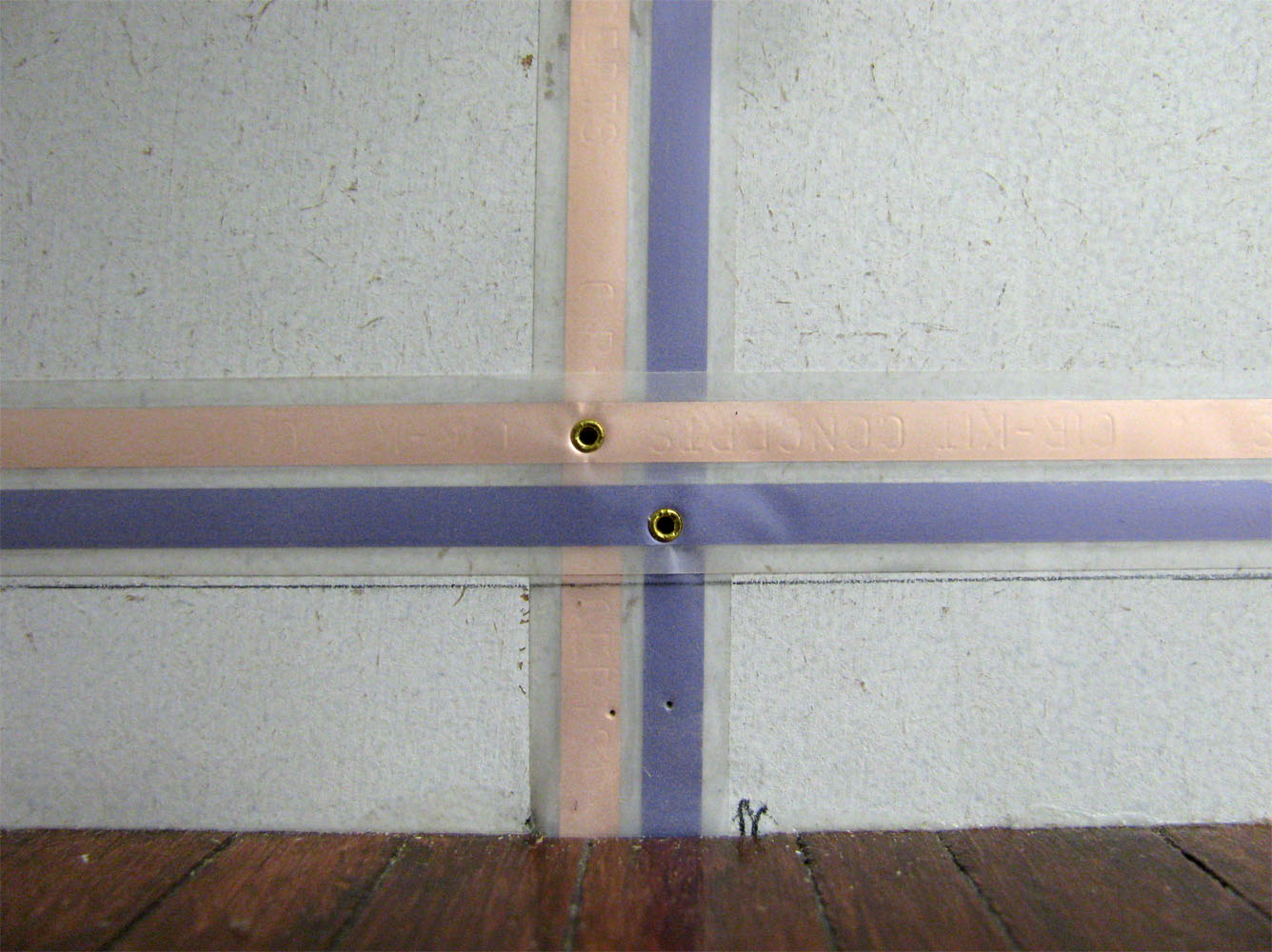

Copper-to-copper, blue-to-blue!!! WiringAssets/153_lg.jpg

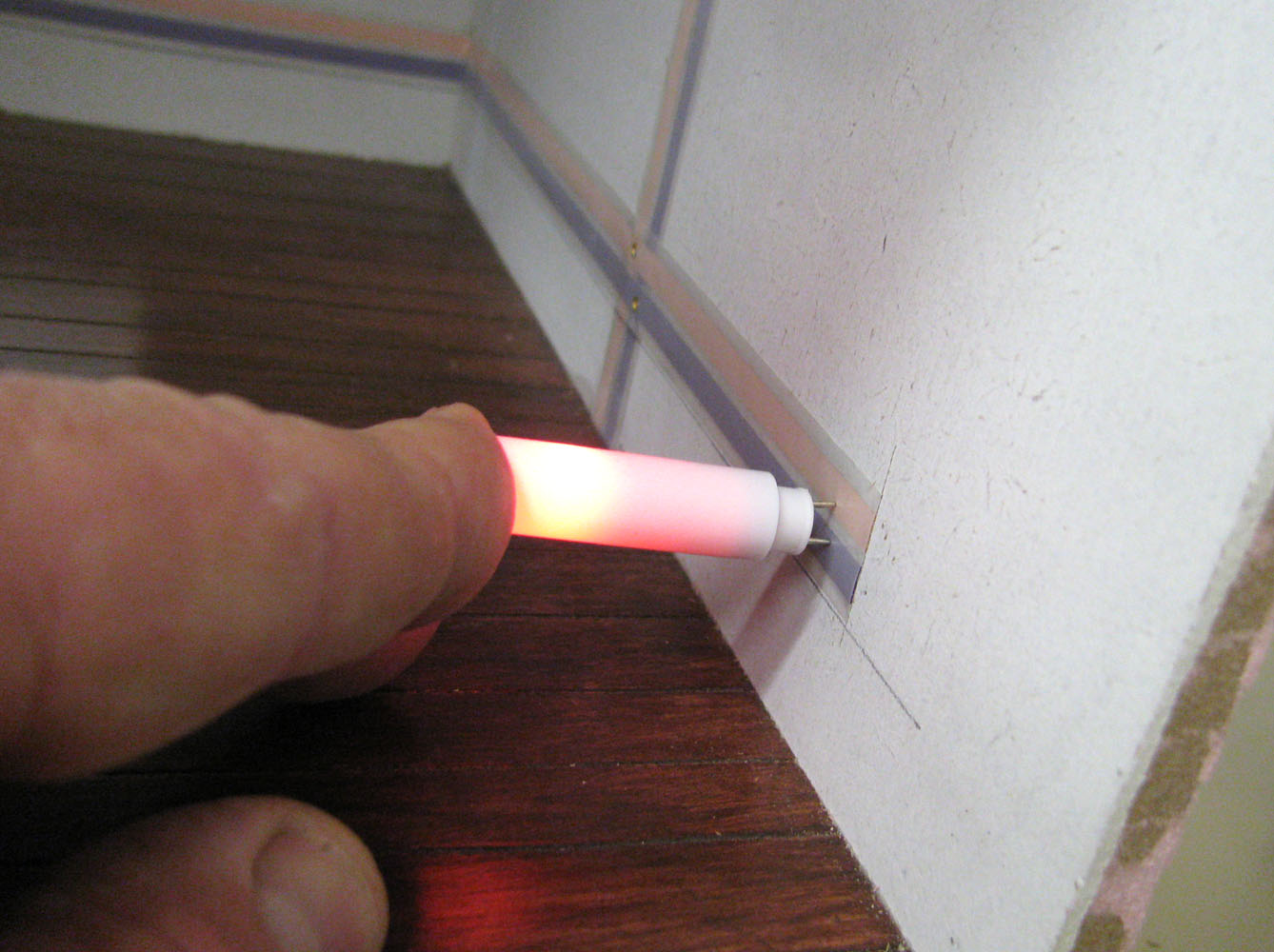

Test each run as you eyelet it into the system WiringAssets/154_lg.jpg

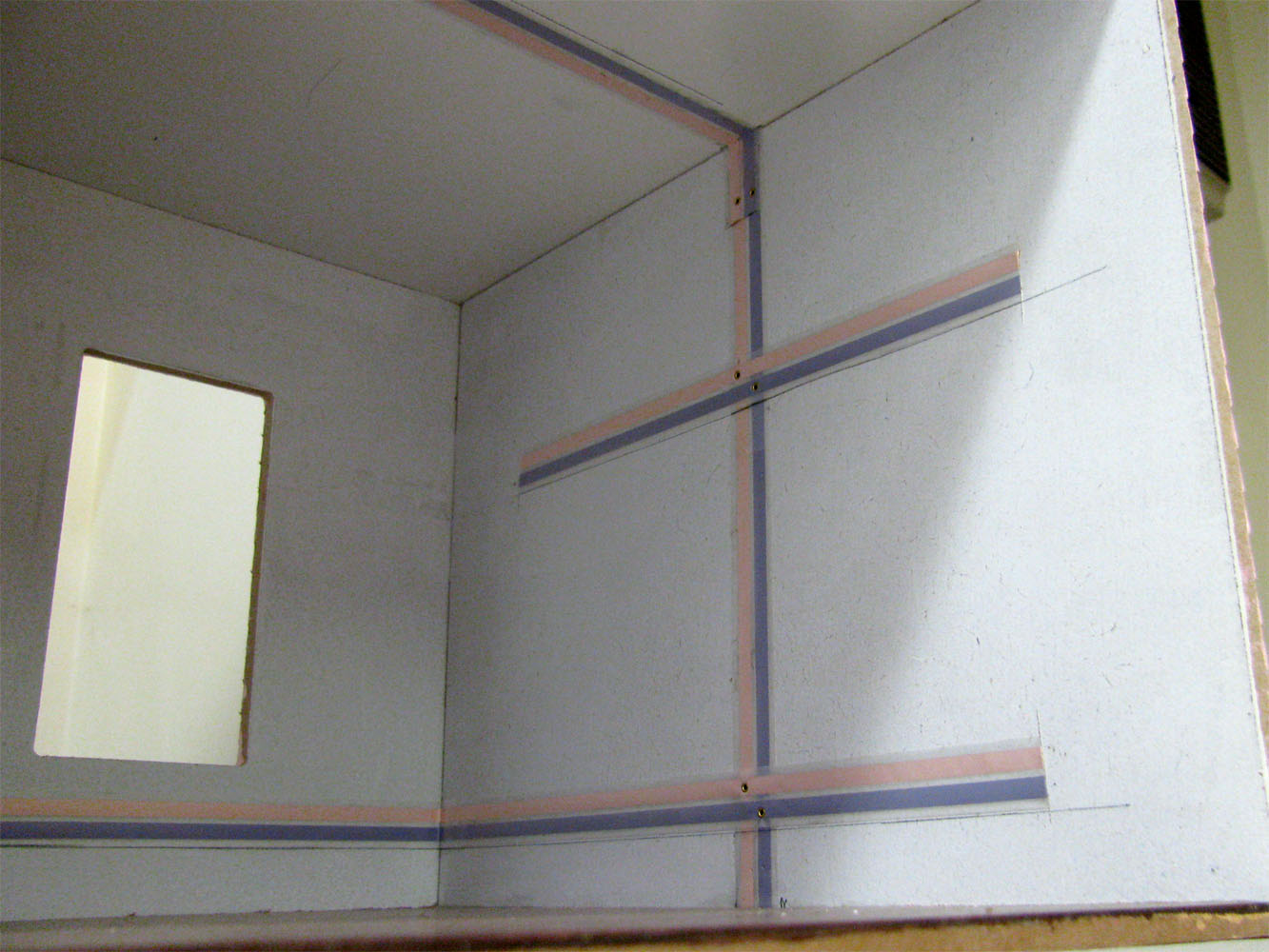

Eyelet every overlap WiringAssets/155_lg.jpg

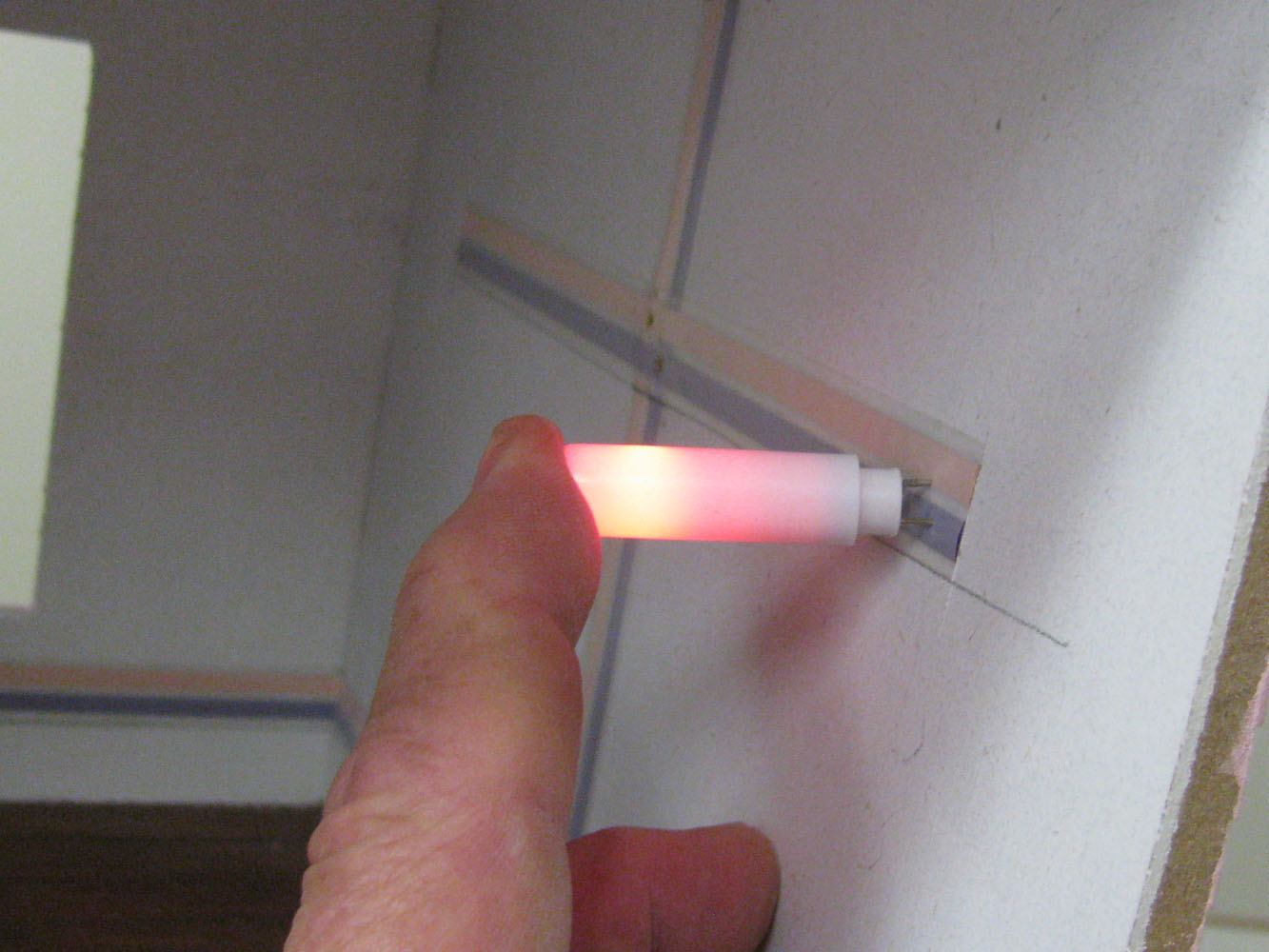

... and test each run WiringAssets/156_lg.jpg

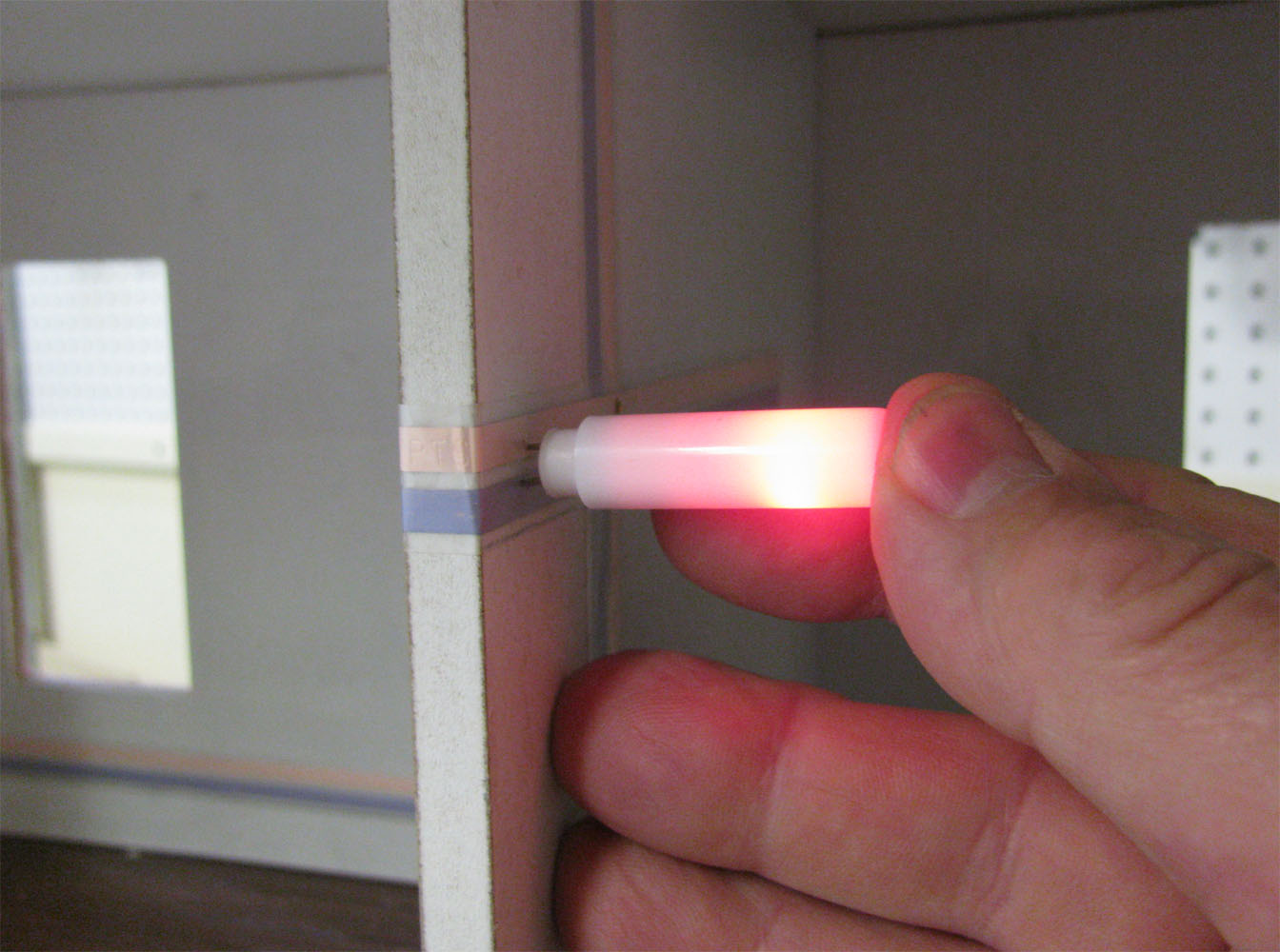

If every run lights up, great! WiringAssets/157_lg.jpg

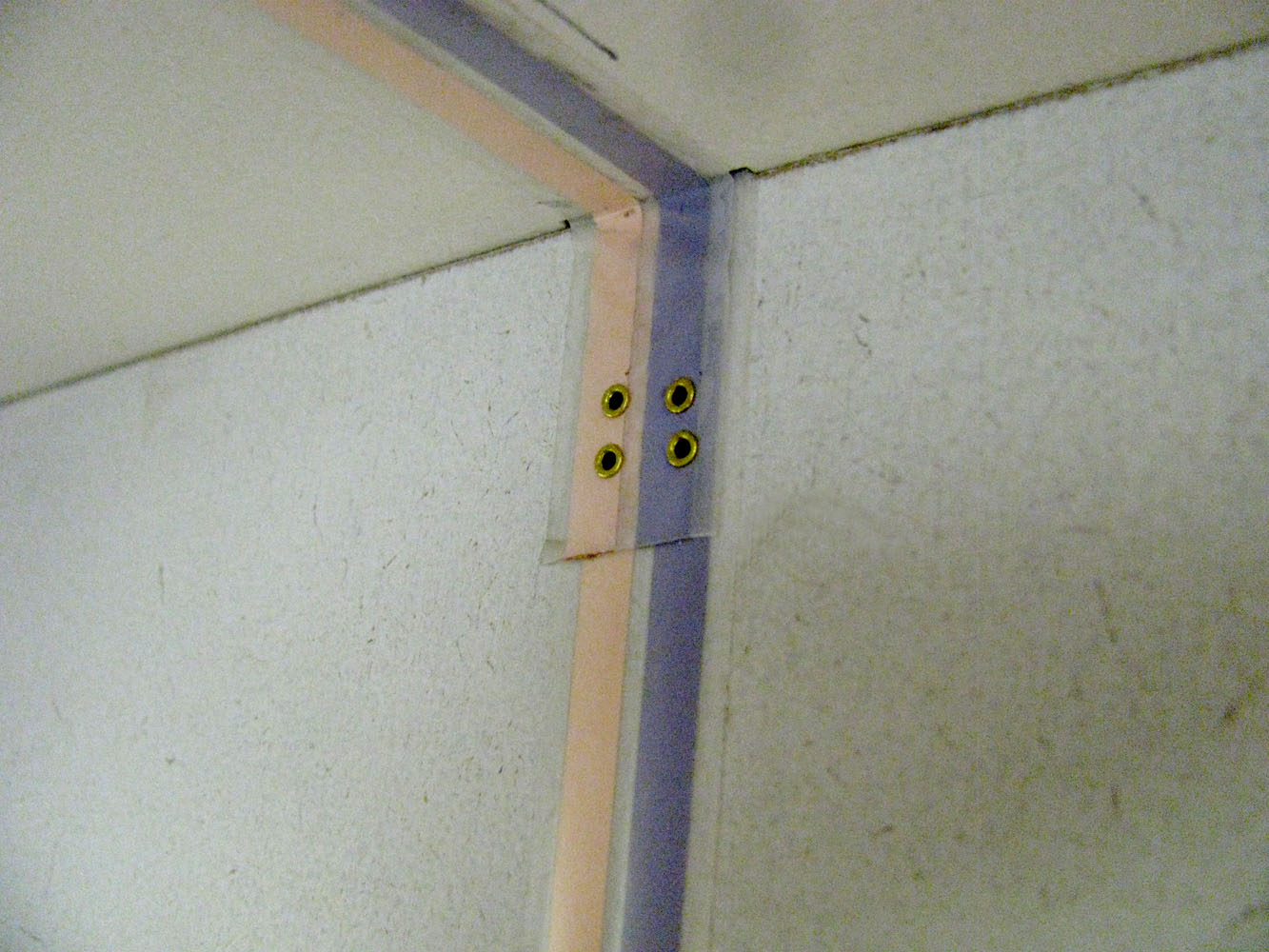

If not, put in another eyelet WiringAssets/158_lg.jpg
